4G ICS Micropower Repeater
Product Details:
- Model：ASTA86
- Place of Origin: Shenzhen China
- Price: Negotiable
- Delivery Time: 1~30 days
- Payment Terms: T/T, Western Union, Paypal
Description:
4G micropower Repeaters provide the most cost-effective solution to improve the quality of indoor coverage and enable users to experience high-quality mobile communications in indoor environments. Plug and play, so that ICS micropower repeater without any professional skills, the average user can easily install their own.
Features:
Plug and play
Built-in donor antenna and relay antenna (gain: 5dBi)
75dB maximum gain (using an external Donor antenna) with perceptual automatic power control

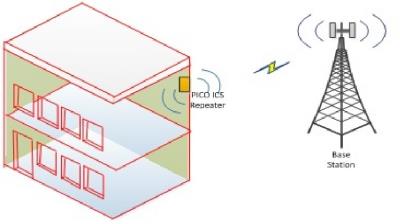

Application Scenarios:
No professional configuration requirements, plug and play, ICS micropower repeator is a fast solution to bring good 4G signal to outdoor, extend the coverage to small and medium-sized indoor environments, such as houses, hotels, hot spots, shops, offices, meeting rooms, apartments... Etc. The 30dB adaptive echo interference cancellation and sensing automatic power control enable the ICS micropower repeater to adapt to time-varying isolation environments and also provide optimal signal coverage all the time.
|
Specifications |
|
System |
LTE |
|
frequency |
RX (MHz) |
1920-1980 |
|
TX (MHz) |
2110-2170 |
|
UL/DL Total Output Power |
UL³ +13dBm / Output Power: DL ³ 13dBm
Independently Settable Per Channel |
|
Maximum gain |
External Donor antenna |
≥75dB, Independently Settable Per Channel |
|
Built-in Donor antenna |
≥65dB, Independently Settable Per Channel |
|
AGC Control Range |
30dB, Independently Working Per Channel |
|
Gain Control Range |
30dB (0.5dB/Step), Independently Settable Per Channel |
|
Out of Band Gain |
3GPP TS 25.106 |
|
Gain Flatness |
≤ 3dB(Peak-to-Peak) |
|
Error Vector Magnitude(EVM) |
≤ 10% (PCDE ≤ -35dB) |
|
Interference Cancellation |
30dB |
|
Spurious Emissions |
3GPP TS 25.106 |
|
Input/Output Intermodulation |
3GPP TS 25.106 |
|
Adjacent Channel Rejection Ratio |
3GPP TS 25.106 |
|
Noise Figure |
≤ 8dB (@Max. Gain) |
|
Group Delay |
≤ 6µs |
|
Operating Temperature Range |
-30°C ~ +55°C |
|
Relative Humidity |
95% |
|
Power Supply |
110~240ACV, 50/60Hz |
|
Power Consumption |
≤ 12W |
|
Standard Compliance |
3GPP TS 25.143、EN 60950、ETSI EN 301 489-1、ETSI EN 301 908-11 |
|
VSWR |
VSWR ≤ 1.5 |
|
RF Connector |
SMA Female(Switch) for External Antenna Extension |
|
PC Control Interface |
USB |
|
LED |
Input RSSI, AGC Alarm, Isolation Alarm, Power On, Sleep, Output Power |
|
Dimensions |
189mm x 170mm x 67mm |
|
Weight |
< 1.2KG |
|
