Home Booster

Product Details:

Features:

Automatically Detect Isolation

Automatic Level Control

Automatic Gain Control

Uplink Auto Shut down

Connect Bluetooth APP To Tune Parameter

Power, Bluetooth connection and Alarming Indicator

Environmental Specifications:

Operating temperature range -25°C to +55°C

Storage temperature range -40°C to +85°C

Relative humidity 0% - 95%

Applications IP43

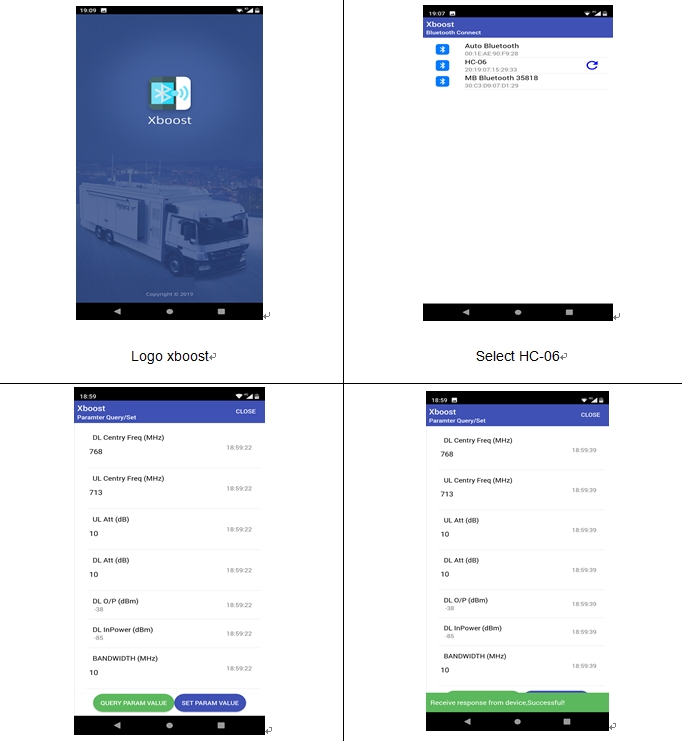

APP Application interface:

Mechanical Specifications:

Connectors type BTS&ANT Port SMA female

Weight ≦0.45KG

Outer Dimension(mm) 156*110*35mm

Packing 1pcs in box

Specifications:

	Uplink	Downlink
Frequency (MHz)	1920-1980	2110-2170
Operating Bandwidth	0.2-50MHz Optional Central Frequency
Max Gain	≧70dB	≧70dB
Gain Tunable Range	≧30 dB	≧30 dB
Max Output Power	≧13dBm	≧13dBm
Automatic Level Control(ALC)	≧30 dB	≧30 dB
Frequency Stability	≦0.01ppm
Noise Figure(NF)	≦7dB	≦7dB
Adjacent Channel Rejection Ratio(ACPR)	≧33dBc@5MHz
	≧33dBc@10MHz
Error Vector Magnitude(EVM)	≦8%	≦8%
	≦45dB @1.0≦f-offset-CW < 5.0MHz
	≦45dB @5.0≦f-offset-CW <10.0MHz
	≦35dB @10.0MHz <f-offset-CW
Automatic Gain Control(AGC)	OK	OK
Out of Band Spurious Emission	Fully comply with 3GPP TS 36.106
In Band Spurious Emission	Fully comply with 3GPP TS 36.106
Max Nondestructive Input Power	≦-10dBm		≦-10dBm
VSWR.	≦2.0
Group Delay	≦2μs
Operating Current/Voltage	AC110V/220V Adpater5.6V
RF Connector	SMA-Female/50 W
