5G convenient communication signal positioning system



Product Details:

  • Model：ASTA89
  • Place of Origin: Shenzhen China
  • Price: Negotiable
  • Delivery Time: 1~30 days
  • Payment Terms: T/T, Western Union, Paypal
Description:
As a new type of information security product, convenient communication signal positioning system can be automatically collected in the boot state.
Under the 4G and 5G mobile phone user serial number information that passes or stays in confidential places, and carries out accurate positioning on the wireless side.

Features:
Information acquisition: Capture the IMSI of 5G and 4G mobile phone users in the coverage area of the product.
Mobile phone positioning: it can accurately locate 5G and 4G mobile users of the three major operators。

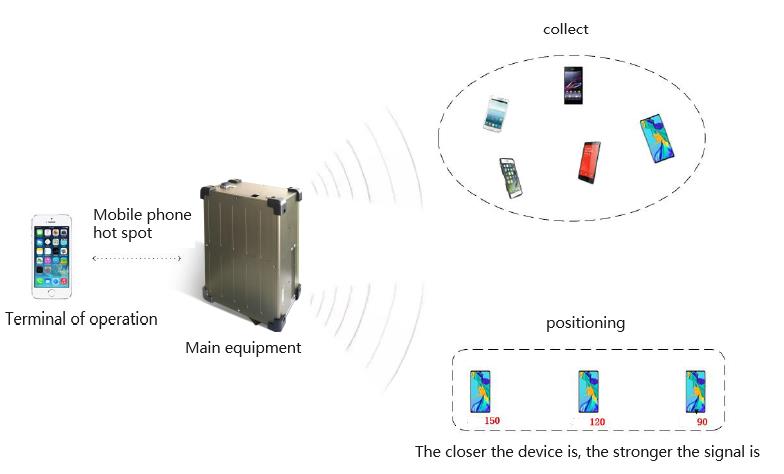

Schematic diagram of how the system works:

Specifications:

Collect and locate objects 5G、4G Mobile terminal
Mode of work 4G： FDD-LTE/TD-LTE
5G：NR TD
Frequency of operation TD-LTE：B34/B38/B39/B40/B41
FDD-LTE：B3/B1/B5/B8
NR-FDD：N1/N28
NR-TD：N41/N77/N78
Rf power 30dBm/ channel
Number of carriers 4G: 4 carriers
5G: 2 carriers
Power adjustable range APP: 1-4 adjustable (enhanced, strong, standard, weak)
Equipment end: 200mw~2W stepless adjustment
Collect content IMSI IMSI, acquisition time
Positioning accuracy ＜0.5 meter
Maximum intercept range > 200 meters (at maximum output, depending on the surrounding radio environment)
Type of antenna Built-in high gain directional antenna
There is no communication mode of the device Wireless (hotspot, Bluetooth) or wired
Charging time 4 hours
Power consumption 90W
Dimensions 342*240*122mm
weight 4.5KG
temperature -0℃～40℃
Class of protection IP40
Interface type SMA-Female （50ohm）
reliability MTBF：≥30000 hours
Configuration listing Main device, Android system APP. antenna 3m SMA, power adapter,



Aisenton Technology has a strong research and development team, a first-class technology research and development team, rich design and practical experience, committed to the research and development and manufacture of communication security protection equipment, is the global anti-terrorism and explosion-proof equipment supplier, the initiator and leader of new security and new communication, and contributes to the global security protection.
