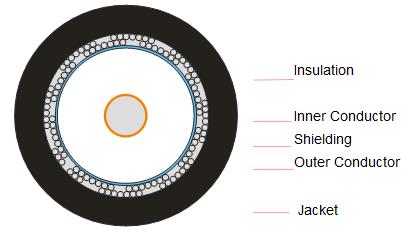

| Inner Conductor | Copper or Copper Clad Aluminum | |
| Conductor Dia. | 2.74 +/-0.02mm | |
| Min.Break Strength | 640 N | |
| Insulation | Foam P.E. | |
| Insulation Dia. | 7.24 +/-0.15mm | |
| Color | Neutral | |
| Centricity | ≥ 85% | |
| Adhesion | 10 to 100N @ 25mm | |
| Shielding | AL/P-Foil (Bonded) | |
| Foil overlap | ≥ 115 % | |
| Outer Conductor | TC Wire Braid | |
| Conductor Dia. | 0.150 +/-0.008mm | |
| No. of Wires | 192 | |
| Coverage | 90 +/-3% | |
| Jacket | PVC | |
| Outer Dia | 10.16 +/-0.15mm | |
| Color | Black | |
| Min.Bending Radius: | ||
| Installation | 25 mm | |
| Repeated | 102 mm | |
| Max.Pulling Tension | 740 | |
| Crush resistance of cable (load of 700N) | < 1 % | |
| Rated Temperature | ||
| Storage/operating temperature | -70~+85 ℃ | |
| Outdoor Installation | -40~+85 ℃ | |
| Characteristic Impedance | 50+/- | 2 ohm | |||
| Capacitance | < 78.4 | pF/m | |||
| Velocity ratio | 85 | % | |||
| DCR: Inner Conductor | < 4.6 | ohm/km | |||
| DCR: Outer Conductor | < 6.0 | ohm/km | |||
| Jacket Sparker | 8000 | V RMS | |||
| Dielectric Strength | 2500 | V DC | |||
| Insulation resistance | > 10,000 | МΩ·km | |||
| Peak Power | 16 | KW | |||
| Shielding Effectiveness | > 90 | dB | |||
| VSWR |
30-1000 MHz |
<1.20 | |||
|
1000-3000 MHz |
<1.25 | ||||
| Attenuation (at 20 ℃) | dB/100ft | dB/100m | |||
| 30 | MHz | 0.67 | 2.20 | ||
| 50 | MHz | 0.90 | 2.90 | ||
| 150 | MHz | 1.50 | 5.00 | ||
| 220 | MHz | 1.90 | 6.10 | ||
| 450 | MHz | 2.70 | 8.90 | ||
| 900 | MHz | 3.90 | 12.80 | ||
| 1500 | MHz | 5.10 | 16.80 | ||
| 1800 | MHz | 5.70 | 18.60 | ||
| 2000 | MHz | 6.00 | 19.80 | ||
| 2500 | MHz | 6.80 | 24.10 | ||
