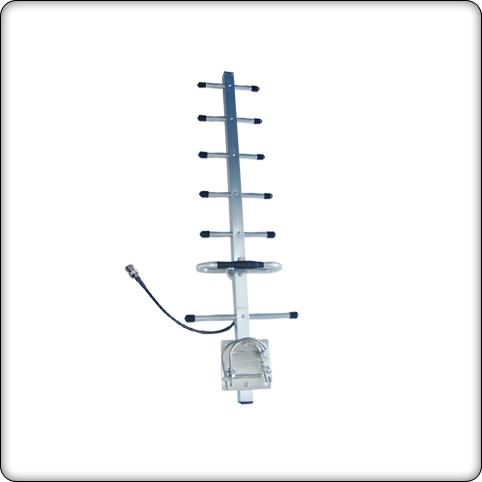

Electrical Specifications
Frequency Range: 824 ~ 960MHz
Polarization: Vertical
VSWR: < 1.4
Gain: 10 dBi
Horizontal 3dB Beamwidth: 51°
Vertical 3dB Beamwidth: 49°
Front-Back Ratio: >14dB
Impedance: 50Ω
Maximum Input Power: 100 W
Connector: N(F)of 7/16DIN(F)
Lightning Protection: Direct Ground
Mechanical Specifications
Dimensions: 740*190*55mm
Weight of Antenna: 0.7kg
Elements: 7
Diameter of Installation Pole: Φ40 mm ~Φ52mm
Wind Velocity: 241km/h
